Kubernetes on AWS - Basic User Management

Introduction Prerequisites Add User Manage Users via git

Introduction

In this blog post, we will walk through a basic Kubernetes user auth setup that integrates with AWS IAM. It ties the user’s Kubernetes access to his IAM user account. The AWS IAM Authenticator for Kubernetes runs on the Amazon EKS control plane by default.

Prerequisites

Kubernetes on AWS - From Zero To Production

Kubernetes on AWS - EKS Setup with Terraform

git clone git@github.com:canida-software/k8s-on-aws.git

Add User

The authenticator retrieves its configuration from the aws-auth configmap in the kube-system namespace. The cluster creator’s AWS IAM user has access to the cluster by default without any entry in the configmap. However, we need to grant explicit access to additional users by linking their IAM user to groups in the cluster (AWS Docs).

First we extract the existing aws-auth configmap from the cluster and store it in a yaml file because it contains account specific information that we want to keep (it contains an ARN to a role that is attached to all your nodes).

cd k8s-on-aws/authorization
kubectl get configmap aws-auth -n kube-system -o yaml > aws-auth.yaml

Afterwards remove anything thats tied to the instantiation of the configmap: creationTimestamp, resourceVersion, selfLink, uid.

Then, we can add a new user by copying his IAM user ARN and tying it to a group. system:masters is a group which is hardcoded into the Kubernetes API server source code as having unrestricted rights to the Kubernetes API server. Therefore, don’t just blindly assign it to users. The full aws-auth.yaml should look similar to this.

apiVersion: v1
kind: ConfigMap
metadata:
  name: aws-auth
  namespace: kube-system
data:
  mapRoles: |
    - groups:
      - system:bootstrappers
      - system:nodes
      rolearn: arn:aws:iam::054000737513:role/general-eks-node-group-20220715203821624700000002
      username: system:node:{{EC2PrivateDNSName}}
  mapUsers: |
    - userarn: arn:aws:iam::054000737513:user/nico
      username: nico
      groups:
        - system:masters

💡

If you apply the aws-auth configmap from the template repository and overwrite the mapRoles section by mistake your nodes won’t be able to talk to the AWS control plane anymore. You need to manually find the general-eks-node-group.. role in IAM, fix the error and apply the correct configmap by hand.

Manage Users via git

We could just apply the above configmap using kubectl apply -f aws-auth.yaml . However, we want to manage it with Argo CD in a GitOps fashion.

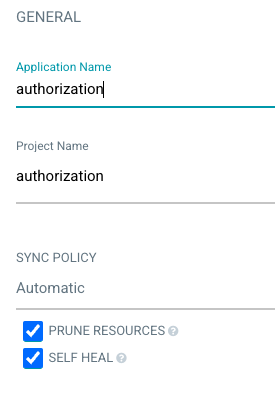

First, push your modified aws-auth.yaml to your repository. Then, head to your Argo CD web dashboard and create a new application. Point the application’s repository source path to authorization .

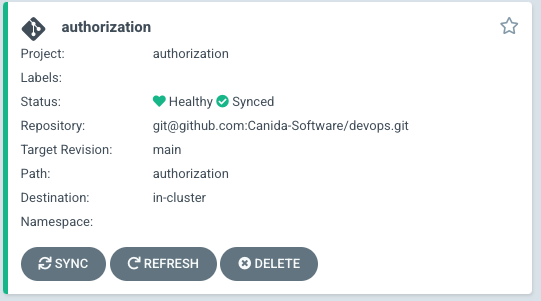

After creating the application it should immediately get synced and the status should flip to healthy & synced:

Notice that I selected self-heal while creating the application. When someone updates the aws-auth configmap outside of the git repository this overwrites the changes and forces the aws-auth configmap back into the state thats stored in git. We want to enforce that git is the only way to (permanently) add new users and noone can bypass this.
